What Is A Baffle Plate In A Wood Heater Design Talk

Step 1: Locate The Baffle Plate. Discover the position of the baffle plate first. It is located close to the top of the stove. Open your wood stove gate and take a peek at that location. You will definitely find it. Step 2: Prepare The Baffle Plate. Now push the front part of the baffle plate. Give it a few heavy taps on the underside to loosen.

What Is Secondary Burn Or Combustion On A Wood Stove? (2022)

A baffle plate is a metal or ceramic piece that sits between the stove and the burning wood. The purpose of this baffle plate is to provide an even flow of air across the burning pieces, which increases the efficiency of your stove's burn rate. Wood fires are one of our oldest methods for keeping warm in large buildings like barns and homes.

Ned Kelly Early Inbuilt Wood Heater Baffle Plate Replacement Products & Store Wood Stoves

Regency EPA wood stoves have two high temperature ceramic baffle plates held in near the top with a pin. Be sure that you always keep the baffles pushed to t.

Norseman Wood Heater Manual ludasurveys

A baffle plate, also referred to a heat deflector plate, sits at the top of the fire box. chamber. Baffles can be made of cast iron, heavy steel, stainless steel or vermiculite. The baffle plate is designed to deflect heat back into the fire box to prevent waste gases. and heat being lost through the flue too quickly.

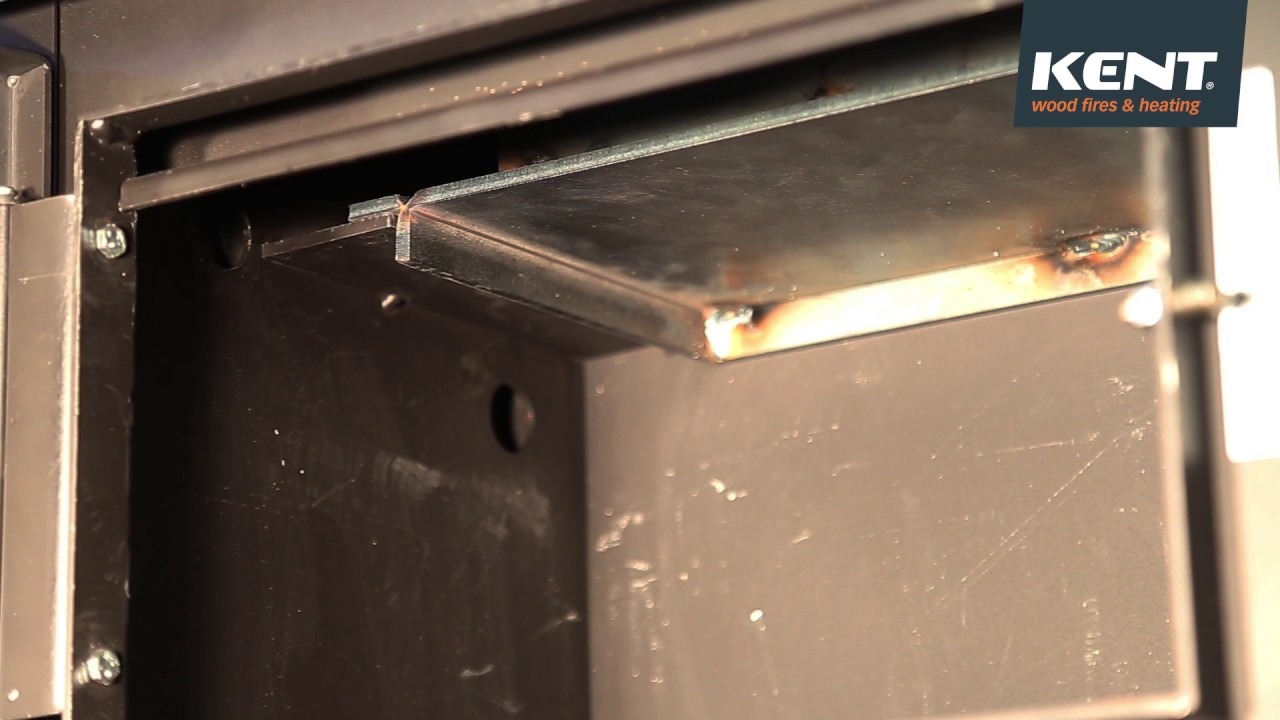

Thorntondale baffle/Throat Plate Removal YouTube

How To Remove Wood Stove Baffle. To locate the baffle plate at the top of the heater, open the door or doors of the wood heater. Push up the plate's front edge. Put a rubber mail on the underside of the trunk to free the jammed platform. Then, after extensive durations of fire cooling and heating, the baffle might be securely trapped in the.

Pin on stove internal design

A wood stove baffle is a heat deflector or a damper inside the stove's combustion chamber. It helps to redirect smoke and gases for a more efficient burn.. Your assumption about the cleaning position, with the baffle plate sitting on the front and near-centered tangs, sounds reasonable. For normal use, positioning the baffle plate on the.

Domestic Division All Areas Chimney Sweeps Michael O'Connor & Son Chimney Sweeps

True North Wood Stove Baffle Removal. With a set of vise-grips, grasp the front baffle tube on the right, slightly away from the baffle air assembly. While squeezing lightly use a hammer to hit the pliers and pull the tube to the right to disengage the tube from the hole on the left. Allow the tube to hang freely from the hole on the right.

Baffle Ultimate 630mm x 250mm Aftermarket Not Original

A baffle plate is a metal plate that sits at the top of the firebox in a wood-burning stove, just below the flue. Its function is to slow down the flow of smoke and gases, ensuring they are burnt more completely before exiting through the flue. The shape and material of the baffle plate can affect how it performs, so it's essential to choose.

LiteOutdoors Stove Baffle In Depth YouTube

Learn how to easily replace the baffle plate on your Jarrahdale Wood Heater. Instructions are applicable to all models including freestanding and fireplace w.

Wood Fire Baffle Plate

Replacing The Baffles. Baffles get installed with the holes towards the rear of the stove. The 3 flanges of the baffles go on the back insulation, the side insulation and the channel running from back to front on the top of the stove. Stove. The screw applies pressure on the top plate to keep them in place.

Stove Baffle Plate Position STOVESO

In my experience, a thicker baffle greatly improves the efficiency of a wood stove. The baffle is an essential component of the stove that plays a crucial role in directing the flow of hot gases and maximizing heat transfer. Several factors affect baffle efficiency, including its thickness, material, and design.

Norseman Wood Heater Manual retailberlinda

The baffle is a heavy duty component located at the top of the firebox inside a wood burning stove, typically made from metal to cope with high temperatures. A baffle plate helps to keep heated air and waste gases inside the firebox for longer to produce even more heat from burning wood. A baffle plate in a wood burning stove can also be known.

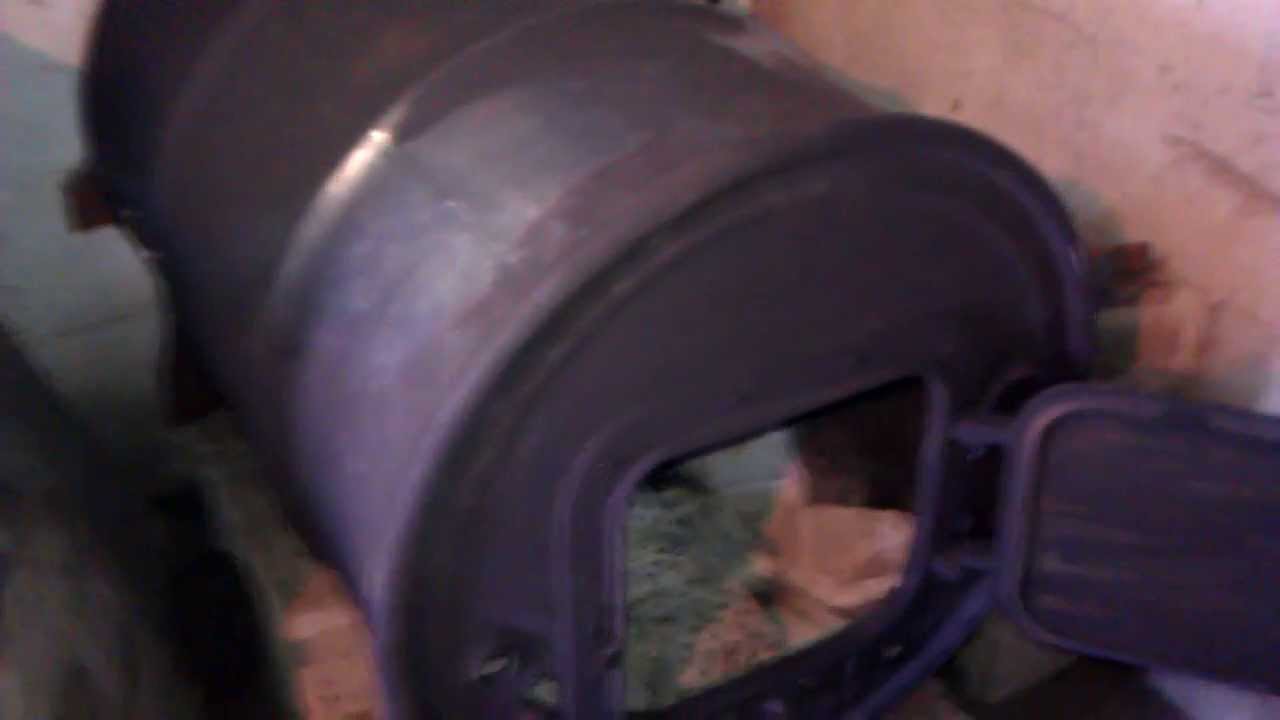

Barrel stove with inside baffle plate installed YouTube

Baffle Plates (Pick Your Model) $300.00. Heater Model. Baffle Plates Radiant (470 X 240) Baffle Plate: Cosy, Esp 20, Sup 10 & 12 (470 X 240) Baffle Plate: Cottage, Esp 28, Supreme 17 & 18 (530 X265) Baffle Plate: Supreme 24 & 25 (630 X 265) Baffle Plate: Elite 19 & 20 (530 X 315) Baffle Plate : Elite 29 & 30 (630 X 315)

How Does A Wood Stove Baffle Work Design Talk

Here's a simple tutorial on how to replace the baffle of your wood-burning appliance - stove, insert, furnace or fireplace!Required:- Locking pliers- Replace.

What Is A Baffle Plate In A Wood Heater Design Talk

Baffle Construction and Material. A wood stove baffle is often a plate or wall that divides the firebox into sections, but it doesn't have to be. In some stoves, it's little more than a disk that partially covers the chimney opening. It's a baffle as long as it performs the required function, which is to restrict the flow of combustion gases.

What Is A Baffle Plate In A Wood Heater Design Talk

Generally, fireplaces are not an efficient means of burning wood. They do not burn as cleanly as an EPA-certified wood stove. Furthermore, fireplaces provide less heat to your home, since most of the heat from a fireplace goes out the chimney. Most fireplace owners do not use their fireplaces as a primary source of heat.
